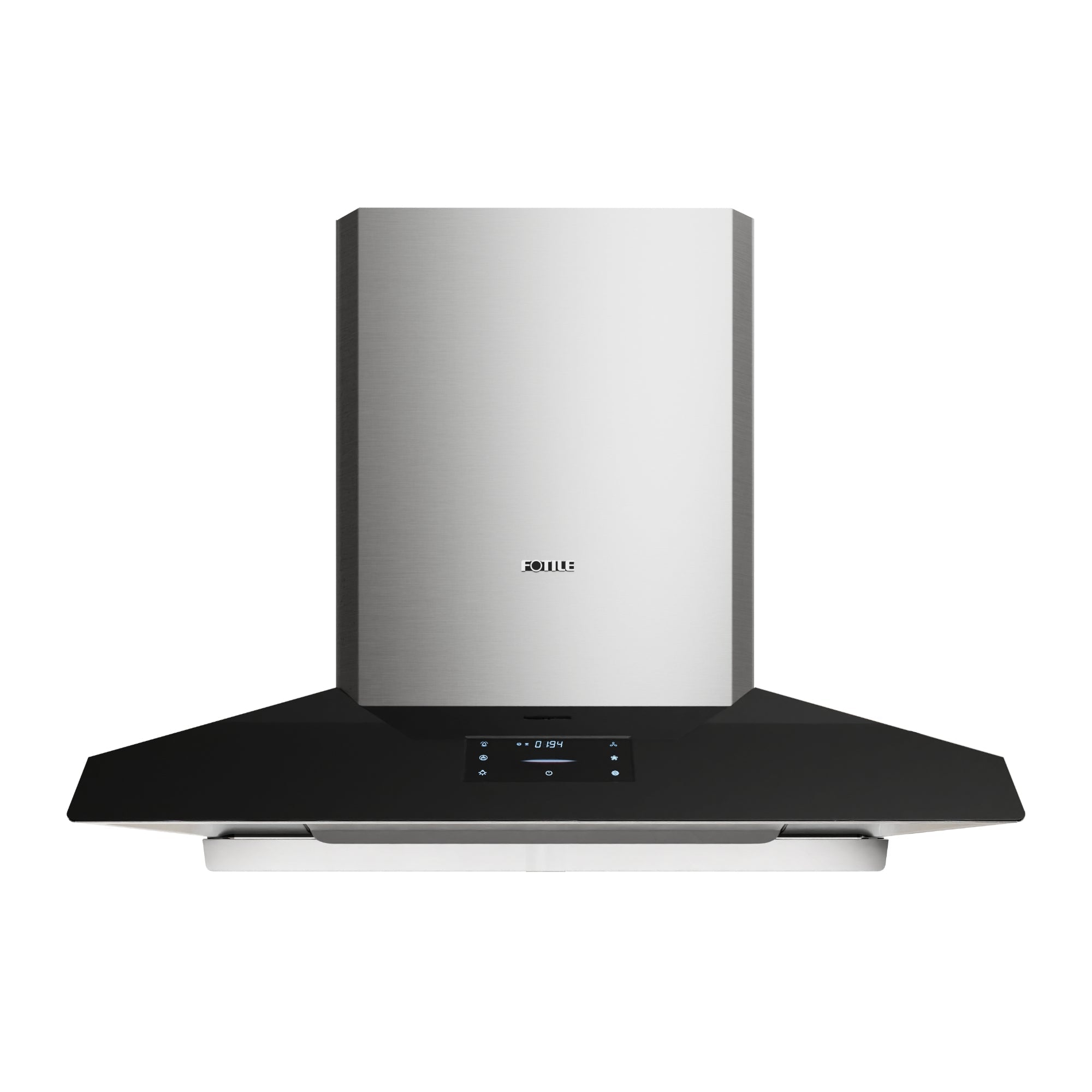

Fotile Perimeter Vent 36-Inch Wall Mount (EMG9050)

The FOTILE Perimeter Vent Series introduces the new EMG9050 range hood that stands out as a premier choice for larger, modern kitchens. This wall-mounted model showcases a powerful design, perfectly complementing spacious cooking areas with its black tempered glass and stainless steel. The EMG9050 excels in performance with its strong 700CFM airflow, propelled by an advanced DC motor, ensuring effective ventilation and smoke extraction. Its innovative features, like the delayed shutoff function, provide added convenience, allowing you to easily maintain a fresh and clean kitchen environment. Plus, its innovative Sync Function, with cooktops and an intelligent self-cleaning system, further enhances its functionality, making it an indispensable tool for any kitchen.
Features:
Powerful DC Motor
Self-Clean Function
Max. EQUIV. CFM: 1300
Auto Turbo Mode
Motion Gesture Touch Free Operation
5 Min Delay Shutoff
Additional Features
Sync Function with Select Cooktops – Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.
Motion Activated – Touchless Control: Easily turn the machine on/off by simply waving your hand, adding convenience and modern flair to your kitchen.
New User Interface – This updated UI features an interactive and visually appealing dual-color skyline that changes in width to correspond with speed adjustments.
New 5-Watt Built-In LED Lights – The LED light is energy-efficient and designed to be gentle on the eyes, ensuring a comfortable cooking experience.
Enhanced Capture Shield Technology – The EMG9050 model introduces an enhanced version of FOTILE’s automatic adjustable Capture-Shield Technology. This improvement allows you to lower the capture shield as needed, effectively increasing the removal of cooking fumes.
*FOTILE Equivalent CFM is a higher CFM rating due to our filterless technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Effect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (7.2 sq.ft.) and achieve a 94% oil filtration rate, and 98% odor reduction rate, keeping your kitchen smoke free and smelling fresh.
Product Dimensions
35 7/16″ x 20 1/2″ x 25 7/16″
Certification
ETL, FCC, HVI, CEC
Power Supply(V/Hz)
120V/60Hz
Max Static Pressure(Pa)
1000
Speed Setting
2+Auto
MAX. EQUIV.CFM
1300
CFM(HVI)
700
Noise Level(sones)
1.2 / 4 / 6.5 / 7.5
Noise Level(dB)
34 / 44 / 51.6 / 54.1
Illumination(W)
5W x 1（LED)
Input Power
310W
Motor
DC Motor
Oil Cup
One Oversized
Oil Filter
Removable & Dishwasher Free
Capture Shield
Auto
Control Type
Touch + Motion
Delay Shutoff
5 min
Screen Lock
Y
Oil Filtration Rate
94%
Odor Elimination Rate
98%
Installation
Wall Mount
Duct Type
Vertical
Net Weight (lb)
75.6
Gross Weight (lb)
92.1
Packing-Box Size(WxDxH) (inch)
39 5/8 × 27 9/16 × 24 13/16
